1416746 | Phoenix Contact

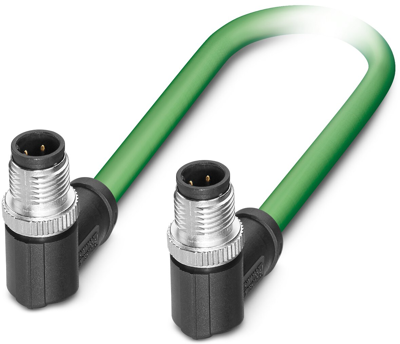

Network cable, M12-plug, angled to M12-plug, angled, Cat 5, SF/TQ, PUR, 2 m, green, 1416746
Unit Price (€ / pc.)
54.3116 € *
Standard delivery time from the manufacturer is: 7 Weeks
Network cable, 1416746, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Plug angled M12, coding: D / IP67, on Plug angled M12, coding: D / IP67, cable length: 2 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | M12-plug, angled | |
| Cable type | SF/TQ | |
| Colour | green | |
| Cable length | 2 m | |
| Material | PUR | |
| Halogen free | Yes | |
| AWG cross-section | AWG 22-7 | |
| Category | Cat 5 | |
| Detent lever protection available | No | |
| Connection (1) | M12-plug, angled | |
| Degree of protection (IP) | IP67 | |
| Version | network cable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
