1416209 | Phoenix Contact

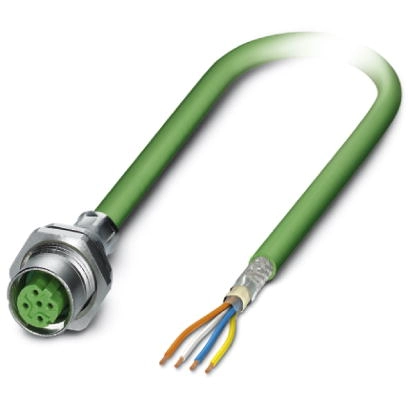

Network cable, M12 socket, straight to open end, Cat 5e, SF/TQ, PUR, 2 m, green, 1416209
Unit Price (€ / pc.)
51.4199 € *
Available in 5 Days: 3 pcs. - if ordered today
Device connector, 1416209, Phoenix Contact
Device connector, rear mounting, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position halogen-free, green RAL 6018, shielded, Socket, straight, M12, coding: D, on free cable end, Rear mounting, Cable lug connection, cable length: 2 m.
Features
- Sealed on the cable side for optimum tightness of seal
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | network cable | |
| Connection (1) | M12 socket, straight | |
| Connection (2) | open end | |
| Cable length | 2 m | |
| Colour | green | |
| Category | Cat 5e | |
| Cable type | SF/TQ | |
| AWG cross-section | AWG 22-7 | |
| Material | PUR | |
| Halogen free | Yes | |
| Pin configuration | 1:1 | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
