1416168 | Phoenix Contact

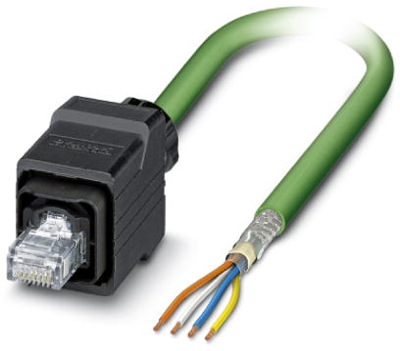

Network cable, RJ45 plug, straight to open end, Cat 5e, SF/TQ, PVC, 5 m, green
Order No.: 62P5501
EAN: 4046356474269
MPN:
1416168
VS-OE-PPC/PL-93B-LI/5,0
Unit Price (€ / pc.)
60.1426 € *
Available: 0 pcs.
Leadtime: On Request **
Network cable, 1416168, Phoenix Contact
Assembled PROFINET cable, CAT5e, shielded, star quad, AWG 22 stranded (7-wire), RAL 6018 (yellow-green), free conductor end on RJ45 plug/IP67 push-pull plastic housing, line, length: 5 m.
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | open end | |
| Version | network cable | |
| AWG cross-section | AWG 22-7 | |
| Colour | green | |
| Halogen free | No | |
| Cable type | SF/TQ | |
| Cable length | 5 m | |
| Category | Cat 5e | |
| Material | PVC | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
