1416155 | Phoenix Contact

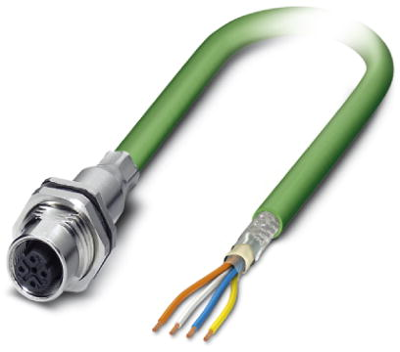

Network cable, M12 socket, straight to open end, Cat 5e, SF/TQ, PVC, 2 m, green, 1416155
Unit Price (€ / pc.)
46.6718 € *
Standard delivery time from the manufacturer is: On Request
Device connector, 1416155, Phoenix Contact
Device connector, rear mounting, PROFINET CAT5, 4-position, PVC, green RAL 6018, Pin, straight, M12, on free cable end, Rear mounting, 0.34 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | network cable | |
| Connection (1) | M12 socket, straight | |
| Connection (2) | open end | |
| Cable length | 2 m | |
| Colour | green | |
| Category | Cat 5e | |
| Cable type | SF/TQ | |
| AWG cross-section | AWG 22-7 | |
| Material | PVC | |
| Halogen free | No | |
| Pin configuration | 1:1 | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
