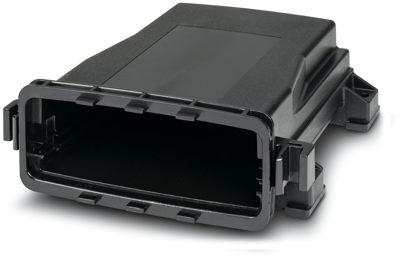

Electronic housing, 2230001, Phoenix Contact

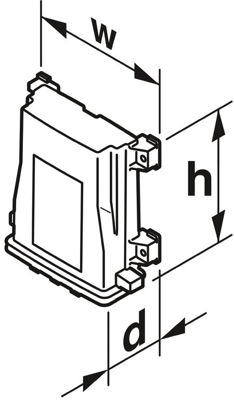

Snap-in locking non-vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate, Color: Black (9005), Width: 170 mm, Height: 176 mm, Depth: 64 mm.
Features
- Suitable for outdoor/indoor applications
- Integrated tamper protection
- Proven PCB connection technology
- Optional accessories for wall and mast mounting
- Effective protection of electronics against thermal and mechanical influences
- Housing design supports the installation of a range of PCB thicknesses for high application diversity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | plastic | |
| Colour | black | |
| Degree of protection (IP) | IP66/IP67 | |
| Height | 176 mm | |
| Width | 170 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
