1050209 | Phoenix Contact
PHOENIX CO 1050209
Unit Price (€ / pc.)
44.8987 € *
Available in 10 days: 101 pcs. - if ordered today

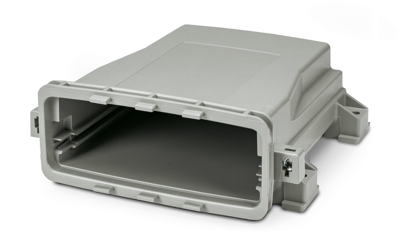

Electronic housing, 1050209, Phoenix Contact

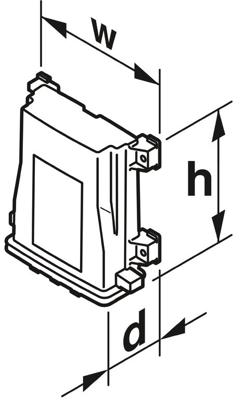

Screw locking vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate, Color: Grey (7042), Width: 164 mm, Height: 176 mm, Depth: 64 mm.
Features
- Suitable for outdoor/indoor applications
- Integrated tamper protection
- Proven PCB connection technology
- Optional accessories for wall and mast mounting
- Effective protection of electronics against thermal and mechanical influences
- Integrated pressure compensation membrane for fluctuating ambient pressures
- Housing design supports the installation of a range of PCB thicknesses for high application diversity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | plastic | |
| Colour | gray | |
| Degree of protection (IP) | IP66/IP67 | |
| Height | 176 mm | |
| Width | 164 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
