1050206 | Phoenix Contact

PHOENIX CO 1050206

Order No.: 64P0841
EAN: 4055626665078
MPN:
1050206
ECS-B-122X169-L-UV-V GY
Series: ECS

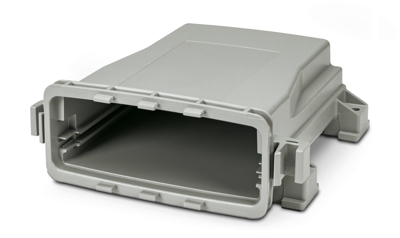

1050206 Phoenix Contact Panel Mount Enclosures Image 1

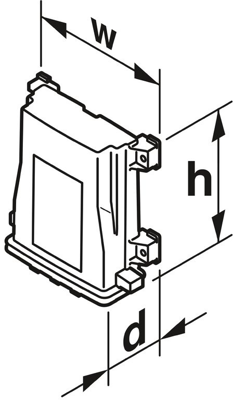

1050206 Phoenix Contact Panel Mount Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
44.3394 € *
Available in 10 days: 118 pcs. - if ordered today
Total Price:
44.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.3394 €

Electronic housing, 1050206, Phoenix Contact

Snap-in locking vented enclosure of the ECS Family. IP66/67/69 rated when mated with associated faceplate, Color: Grey (7042), Width: 170 mm, Height: 176 mm, Depth: 64 mm.

Features

  • Suitable for outdoor/indoor applications
  • Integrated tamper protection
  • Proven PCB connection technology
  • Optional accessories for wall and mast mounting
  • Effective protection of electronics against thermal and mechanical influences
  • Integrated pressure compensation membrane for fluctuating ambient pressures
  • Housing design supports the installation of a range of PCB thicknesses for high application diversity
Technical specifications
Filter Property Value
Material plastic
Colour gray
Degree of protection (IP) IP66/IP67
Height 176 mm
Width 170 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
