2908203 | Phoenix Contact

Surge protection device, 220 mA, 48 VDC, 2908203

Order No.: 64P6076
EAN: 4055626282886
MPN:
2908203
TTC-6P-2X1-48DC-UT-I
Series: TTC
2908203 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
137.5997 € *
Available in 10 days: 43 pcs. - if ordered today
Total Price:
137.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
137.5997 €

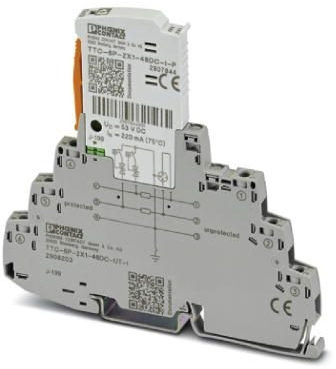

Surge protection device, 2908203, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated status indicator for two signal wires with common reference potential, for example: Digital IN/OUT.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection device
Rated current 220 mA
Voltage 48 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
