2907846 | Phoenix Contact

Surge protection plug, 600 mA, 12 VDC, 2907846

Order No.: 64P6086
EAN: 4055626634746
MPN:
2907846
TTC-6P-3-HF-12DC-I-P
Series: TTC

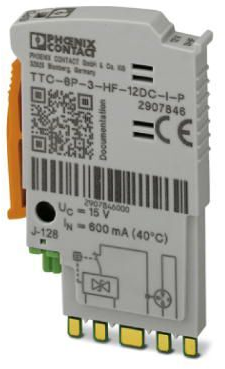

2907846 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
105.2912 € *
Available in 10 days: 37 pcs. - if ordered today
Total Price:
105.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
105.2912 €

Surge protection plug, 2907846, Phoenix Contact

Surge protection plug with integrated status indicator on the module for three signal wires. For HF applications. Nominal voltage: 12 V DC.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection plug
Connection pluggable
Rated current 600 mA
Voltage 12 VDC
Logistics
Customs tariff number 85363010
Country of origin DE
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
