2906828 | Phoenix Contact

Surge protection device, 600 mA, 24 VDC, 2906828

Order No.: 64P6093
EAN: 4055626135892
MPN:
2906828
TTC-6P-3-HF-F-M-EX-24DC-UT-I
Series: TTC

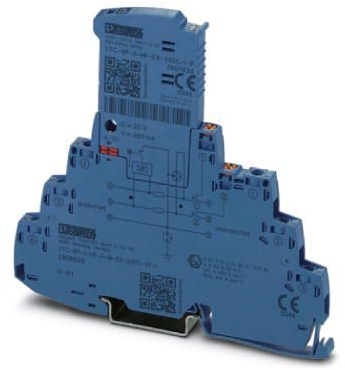

2906828 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
169.2775 € *
Available: 0 pcs.
Available in 10 days: 23 pcs.
Leadtime: 2 Weeks **
Total Price:
169.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
169.2775 €

Surge protection device, 2906828, Phoenix Contact

Surge protection with integrated status indicator and knife disconnection for a 3-wire Ex i signal circuit with common reference potential. For HF applications. Indirect grounding via gas discharge tube, HART-compatible. Suitable for use in the fieldbus system (for example, PROFIBUS PA) in accordance with the FISCO concept, APL ready.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version Überspannungsschutzgerät
Rated current 600 mA
Voltage 24 VDC
Connection Schraubanschluss
Assembly DIN-Schiene
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
