2906824 | Phoenix Contact

Surge protection device, 600 mA, 24 VDC, 2906824

Order No.: 64P6062
EAN: 4055626135861
MPN:
2906824
TTC-6P-1X2-M-EX-24DC-UT-I
Series: TTC

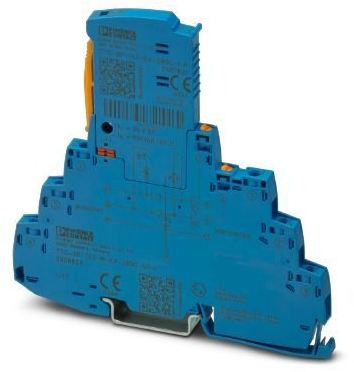

2906824 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
151.6774 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
151.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
151.6774 €

Surge protection device, 2906824, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated status indicator and disconnect knife for a 2-wire floating Ex i signal circuit, for example, 0(4) - 20 mA current loop, HART-compatible.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection device
Rated current 600 mA
Voltage 24 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
