2906822 | Phoenix Contact

Surge protection device, 600 mA, 12 VDC, 2906822

Order No.: 64P6020
EAN: 4055626235097
MPN:
2906822
TTC-6-3-HF-F-M-EX-12DC-UT-I
Series: TTC

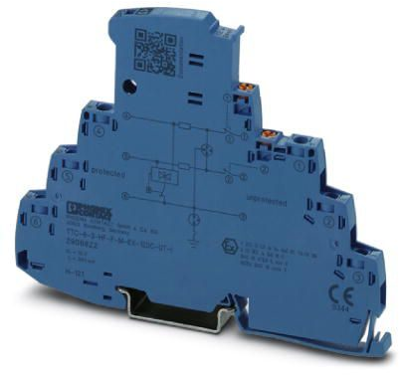

2906822 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
119.9877 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
119.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
119.9877 €

Surge protection device, 2906822, Phoenix Contact

Surge protection with integrated status indicator and knife disconnection for a 3-wire Ex i signal circuit with common reference potential. For HF applications. Indirect grounding via gas-filled surge arrester, HART-compatible.

Features

  • Continuous monitoring of protective devices
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection device
Rated current 600 mA
Voltage 12 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
