2906787 | Phoenix Contact

Surge protection device, 600 mA, 24 VDC, 2906787

Order No.: 64P6091
EAN: 4055626135441
MPN:
2906787
TTC-6P-3-HF-F-M-24DC-UT-I
Series: TTC
2906787 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
159.8884 € *
Available in 10 days: 88 pcs. - if ordered today
Total Price:
159.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
159.8884 €

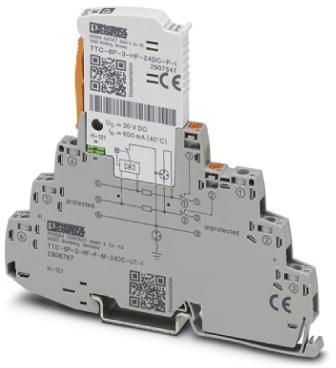

Surge protection device, 2906787, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated status indicator and knife disconnection for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage. Indirect grounding via gas discharge tube, Ex e approval for zone 2.

Features

  • Continuous monitoring of protective devices
  • Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
  • The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection device
Rated current 600 mA
Voltage 24 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
