2906778 | Phoenix Contact

Surge protection device, 600 mA, 12 VDC, 2906778

Order No.: 64P6016
EAN: 4055626135366
MPN:
2906778
TTC-6-3-HF-F-M-12DC-PT-I
Series: TTC
2906778 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
118.9286 € *
Available in 10 days: 178 pcs. - if ordered today
Total Price:
118.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
118.9286 €

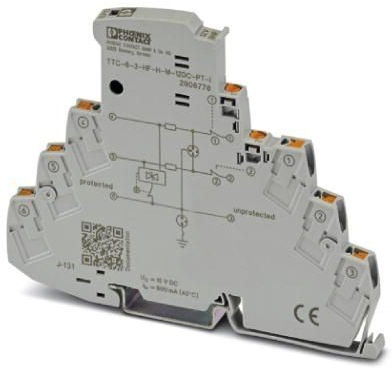

Surge protection device, 2906778, Phoenix Contact

Surge protection with integrated status indicator and knife disconnection for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage (up to 90 Mbps). Indirect grounding via gas-filled surge arrester.

Features

  • Continuous monitoring of protective devices
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Filter Property Value
Version surge protection device
Rated current 600 mA
Voltage 12 VDC
Connection push-in
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85363010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
