2906767 | Phoenix Contact

Surge protection device, 600 mA, 24 VDC, 2906767

Order No.: 64P6011
EAN: 4055626135168
MPN:
2906767
TTC-6-2X1-F-M-24DC-UT-I
Series: TTC

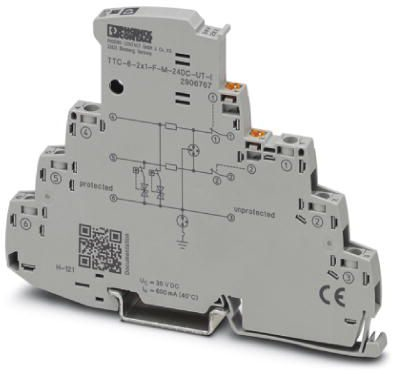

2906767 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
104.9104 € *
Available in 10 days: 22 pcs. - if ordered today
Total Price:
104.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
104.9104 €

Surge protection device, 2906767, Phoenix Contact

Surge protection with integrated status indicator and disconnect knife for two signal wires with common reference potential. Indirect grounding via gas-filled surge arrester, for example: Digital IN/OUT.

Features

  • Continuous monitoring of protective devices
  • Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
Version surge protection device
Rated current 600 mA
Voltage 24 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
