2906750 | Phoenix Contact
Surge protection device, 600 mA, 24 VDC, 2906750
Unit Price (€ / pc.)
142.2407 € *
Standard delivery time from the manufacturer is: 7 Weeks

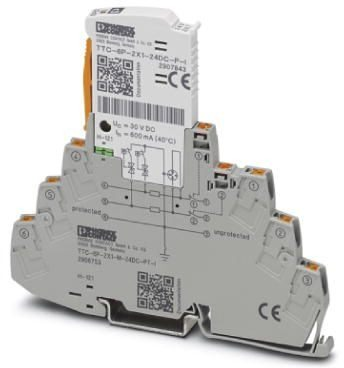

Surge protection device, 2906750, Phoenix Contact
Surge protection, consisting of protective plug and base element, with integrated status indicator and disconnect knife for a 2-wire floating signal circuit, for example, 0(4) - 20 mA current loop, Ex e approval for zone 2, HART-compatible.
Features
- Continuous monitoring of protective devices
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Space-saving and cost-saving with a narrow overall width of just 6 mm
Technical specifications
| Version | surge protection device | |
| Rated current | 600 mA | |
| Voltage | 24 VDC | |
| Connection | push-in | |
| Assembly | DIN rail |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
