2905638 | Phoenix Contact
Lightning/surge arrester, 50 A, 5-250 VAC/5-30 VDC, 2905638
Unit Price (€ / pc.)
352.4899 € *
Standard delivery time from the manufacturer is: On Request

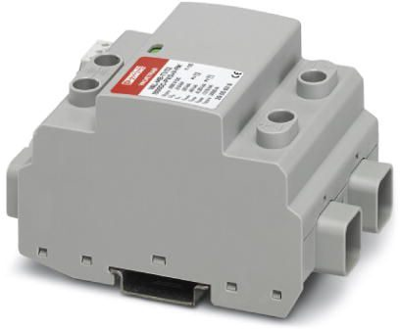

Lightning/surge arrester, 2905638, Phoenix Contact
Lightning current arrester/surge protective device for 2-position isolated and grounded 1,000 V DC PV systems, for DIN rail mounting, with remote indication contact, temperature-monitored protective elements, status message on the module.
Features
- Space-saving installation, thanks to the compact design
- Double terminal block for safe and easy equipotential bonding connection
- Screw shafts with raised domes to ensure safe working
- Main connections with extended insertion funnels for increased resistance to creepage
- Plug-in signal connection for remote status signaling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lightning/surge arrester | |
| Rated current | 50 A | |
| Voltage | 5-250 VAC/5-30 VDC | |
| Connection | screw connection | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363030 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
