2905350 | Phoenix Contact

Surge arrester, 63 A, 5-250 VAC, 2905350

Order No.: 64P6281
EAN: 4046356948180
MPN:
2905350
VAL-SEC-T2-2C-175-FM
Series: VAL
2905350 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
192.7681 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
192.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
192.7681 €

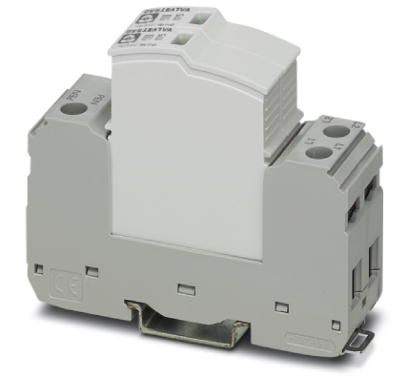

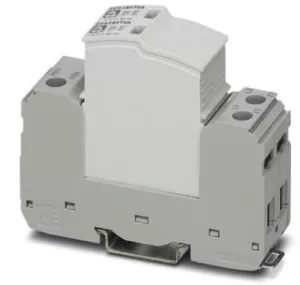

Surge arrester, 2905350, Phoenix Contact

Plug-in surge arrester, in accordance with Type 2/Class II, for 2-phase power supply networks with combined PE and N installed in one conductor (3-conductor system: L1, L2, PEN).

Features

  • Easy to maintain due to consistently pluggable protection modules
  • Excellent level of information provided by mechanical/visual status indicator and remote indication contact
  • More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
  • Low voltage protection level at high continuous voltage for optimum protection of the subsequent installation
  • Varistor arrester with a low leakage current
Technical specifications
Filter Property Value
Version surge arrester
Rated current 63 A
Voltage 5-250 VAC
Connection screw connection
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85363030
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
