2882569 | Phoenix Contact
Surge protection device, 450 mA, 24 VDC, 2882569
Unit Price (€ / pc.)
210.3920 € *
Standard delivery time from the manufacturer is: 3 Weeks
Surge protection device, 2882569, Phoenix Contact

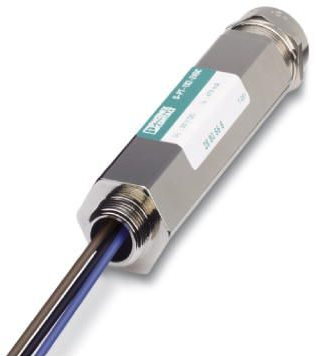

Surge protection in the IP67 screw-on module for measuring sensors, direct mounting with 1/2" NPT outer thread, cable gland for the signal cable, two-stage protective circuit. HART-compatible.
Features
- Easiest field mounting with standardized thread
- Versatile in use with universal protective circuit
- Use under extreme ambient conditions with robust design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 24 VDC | |
| Rated current | 450 mA | |
| Version | surge protection device | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
