2881007 | Phoenix Contact
Surge protection device, 10 A, 3.3 VDC, 2881007
Unit Price (€ / pc.)
181.7487 € *
Standard delivery time from the manufacturer is: On Request

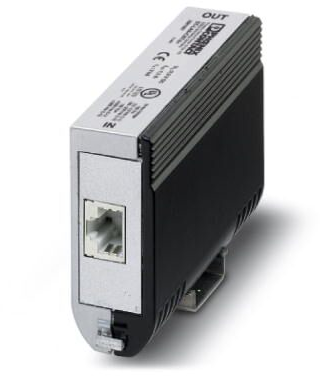

Surge protection device, 2881007, Phoenix Contact
Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
Features
- Can be used in applications up to 10 Gbps with adapted protective circuit
- Easy network integration via RJ45 Yescks
- Can be installed in a control cabinet by removing the ground connection adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surge protection device | |
| Rated current | 10 A | |
| Voltage | 3.3 VDC | |
| Connection | RJ45 | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
