2880561 | Phoenix Contact
Surge protection device, 400 mA, 14-18 VDC, 2880561
Unit Price (€ / pc.)
207.2504 € *
Available in 10 days: 1 pcs. - if ordered today

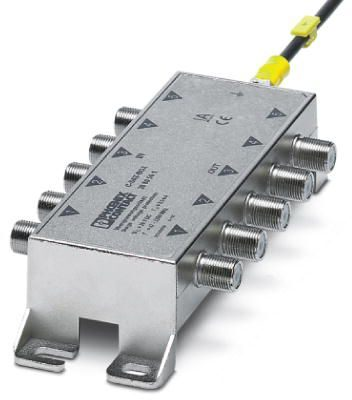

Surge protection device, 2880561, Phoenix Contact
Surge protection for antenna distributors in satellite systems. IN and OUT via F connectors, 5 channels for signals from SAT systems and terrestrial antennas, ground connection on the outside of the housing.
Features
- Space-saving, thanks to the compact design
- No signal interference with optimum transmission properties
- Protection of digital and analog signals with universal protective circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surge protection device | |
| Rated current | 400 mA | |
| Voltage | 14-18 VDC | |
| Connection | screw connection | |
| Assembly | screw mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
