2856799 | Phoenix Contact
Surge protection plug, 6 A, 120 VAC, 2856799
Unit Price (€ / pc.)
122.6176 € *
Standard delivery time from the manufacturer is: On Request

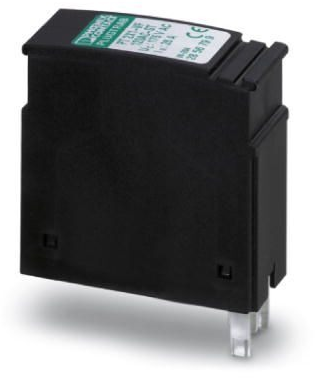

Surge protection plug, 2856799, Phoenix Contact
Protective connector with protective circuit free of leakage current for two floating signals. Connection in series, consisting of varistor and gas-filled surge arrester between signal wires and ground.
Features
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Maximum ease of maintenance, thanks to the 2-piece design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Version | surge protection plug | |
| Connection | pluggable | |
| Voltage | 120 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
