2839648 | Phoenix Contact
Surge protection plug, 26 A, 48 VDC, 2839648
Unit Price (€ / pc.)
123.7362 € *
Available in 10 days: 48 pcs. - if ordered today

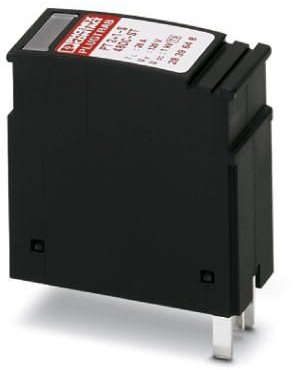

Surge protection plug, 2839648, Phoenix Contact
Protective plug PT with device surge protection for power supply units, visual error display. Nominal voltage: 48 V AC.
Features
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
- Maximum ease of maintenance, thanks to the 2-piece design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | surge protection plug | |
| Connection | pluggable | |
| Rated current | 26 A | |
| Voltage | 48 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363030 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
