2804610 | Phoenix Contact

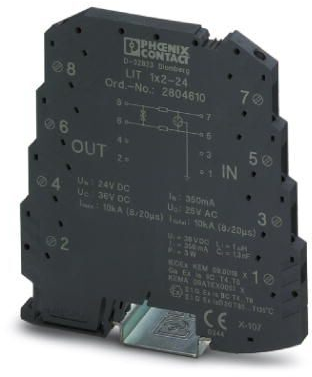

Surge protection device, 350 mA, 24 VDC, 2804610

Order No.: 64P5699
EAN: 4046356428330
MPN:
2804610
LIT 1X2-24
Series: LIT
2804610 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
100.6383 € *
Available in 10 days: 5 pcs. - if ordered today
Total Price:
100.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
100.6383 €

Surge protection device, 2804610, Phoenix Contact

Surge protection in a one-piece 6.2 mm wide DIN rail module for one floating signal circuit in 2-conductor technology. Tested in accordance with the following types of protection in Ex areas: Ex ia IIC / Ex iaD. HART-compatible.

Features

  • Cost-optimized with tailored product features
  • Universal use with extended nominal voltage range
Technical specifications
Version surge protection device
Rated current 350 mA
Voltage 24 VDC
Connection screw connection
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
