2801513 | Phoenix Contact

Surge protection device, 350 mA, 24 VDC, 2801513

Order No.: 64P5916
EAN: 4046356801232
MPN:
2801513
PT-IQ-2X2-EX-24DC-UT
Series: PT-IQ
2801513 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
314.3980 € *
Available in 10 days: 80 pcs. - if ordered today
Total Price:
314.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
314.3980 €

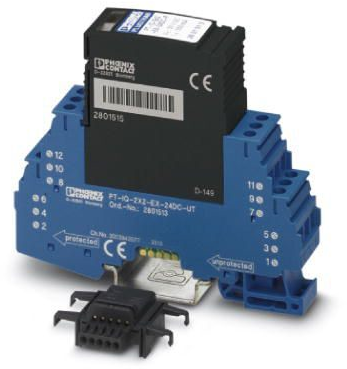

Surge protection device, 2801513, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module, for one 2-wire floating Ex i signal circuit, HART-compatible.

Features

  • Predictive monitoring with 3-stage LED display
  • Install quickly and error-free with DIN rail connectors
  • Maximum ease of maintenance, thanks to the 2-piece design
  • Maximum protection for MCR applications with high discharge capacity
Technical specifications
Filter Property Value
Version surge protection device
Rated current 350 mA
Voltage 24 VDC
Connection screw connection
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85363010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
