2801264 | Phoenix Contact

Surge protection device, 700 mA, 24 VDC, 2801264

Order No.: 64P5901
EAN: 4046356766470
MPN:
2801264
PT-IQ-2X2+F-24DC-PT
Series: PT-IQ
2801264 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
328.7851 € *
Available in 10 days: 22 pcs. - if ordered today
Total Price:
328.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
328.7851 €

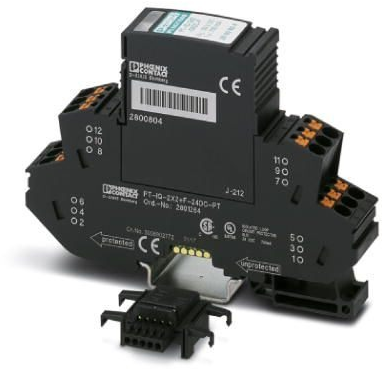

Surge protection device, 2801264, Phoenix Contact

Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module, for two 2-wire floating signal circuits. Indirect grounding via gas-filled surge arrester, HART-compatible.

Features

  • Predictive monitoring with 3-stage LED display
  • Install quickly and error-free with DIN rail connectors
  • Maximum ease of maintenance, thanks to the 2-piece design
  • Maximum protection for MCR applications with high discharge capacity
Technical specifications
Version surge protection device
Rated current 700 mA
Voltage 24 VDC
Connection pluggable
Assembly DIN rail
Logistics
Country of origin DE
Customs tariff number 85363030
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
