2800628 | Phoenix Contact

Surge arrester, 300 A, 230 VAC, 2800628

Order No.: 64P6139
EAN: 4046356615082
MPN:
2800628
VAL-MS 1000DC-PV/2+V
Series: VAL
2800628 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
252.3276 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
252.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
252.3276 €

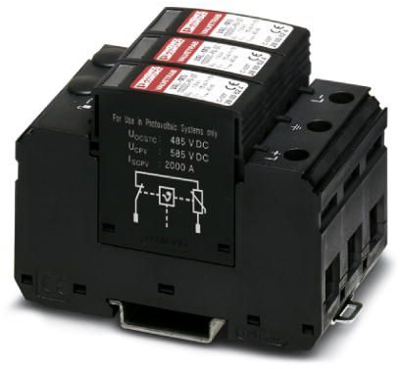

Surge arrester, 2800628, Phoenix Contact

Surge protective device for 2-position isolated and grounded 1,000 V DC PV systems, for DIN rail mounting, 3-position base element, three pluggable temperature-monitored protective elements, status message on each plug.

Features

  • Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
  • Easy testing and insulation measurement, thanks to pluggable protection modules
  • Wide range of applications due to various nominal voltages
  • High degree of modularity provides individual solutions for every application
Technical specifications
Filter Property Value
Version surge arrester
Rated current 300 A
Voltage 230 VAC
Connection screw connection
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85363030
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
