2800186 | Phoenix Contact

Lightning/surge arrester, 80 A, 240 VAC, 2800186

Order No.: 64P6243
EAN: 4046356518574
MPN:
2800186
VAL-MS-T1/T2 335/12.5/1+1-FM
Series: VAL
2800186 Phoenix Contact Overvoltage Protection
Image may differ
Unit Price (€ / pc.)
327.3452 € *
Available in 10 days: 82 pcs. - if ordered today
Total Price:
327.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
327.3452 €

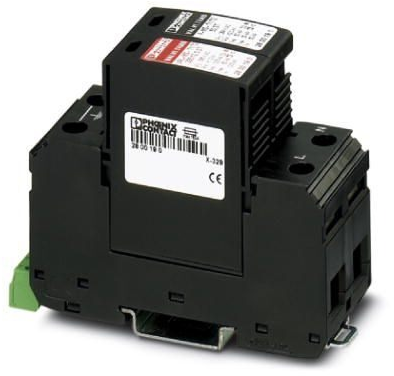

Surge arrester, 2800186, Phoenix Contact

Universal varistor-based plug-in lightning/surge arrester for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact.

Features

  • Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
  • Easy testing and insulation measurement, thanks to pluggable protection modules
  • Vibration-resistant latching ensures the plug remains firmly in place
Technical specifications
Version lightning/surge arrester
Rated current 80 A
Voltage 240 VAC
Connection screw connection
Assembly DIN rail
Logistics
Customs tariff number 85363030
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
