1628949 | Phoenix Contact

Plug, 7 pole, crimp connection, standard/ONECLICK quick locking system, straight, 1628949

Order No.: 64P5057
EAN: 4055626706542
MPN:
1628949
Series: M17 PRO
1628949 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
18.3498 € *
Available in 10 days: 379 pcs. - if ordered today
Total Price:
18.35 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3498 €
10 pcs.
17.1003 €
25 pcs.
16.0174 €
50 pcs.
15.0654 €
*incl. VAT plus shipping costs
Subject to prior sale

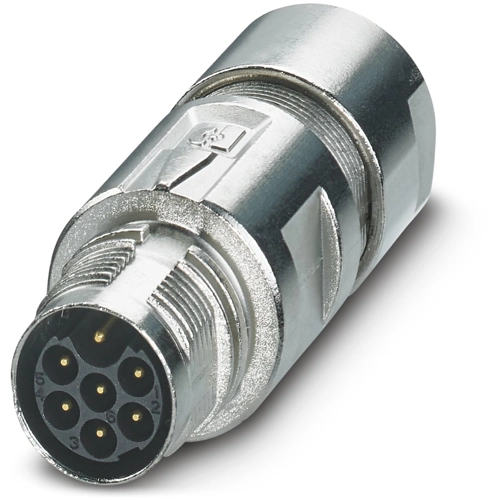

Coupler connector, 1628949, Phoenix Contact

M17, Coupler connector, series: M17 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 6+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 5.5 mm ... 9.5 mm, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
Orientation straight
Cable diameter 5.5 to 9.5 mm
Type of locking standard/ONECLICK quick locking system
Version plug
Pin number 7 pole
Contact connection crimp connection
Shell Material zinc die casting
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
