1627206 | Phoenix Contact

Plug, 13 pole, crimp connection, screw locking, straight, 1627206

Order No.: 62P4229
EAN: 4055626408217
MPN:
1627206
SH-8EPS48AH000S
Series: SH

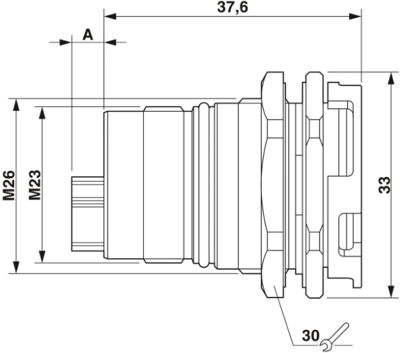

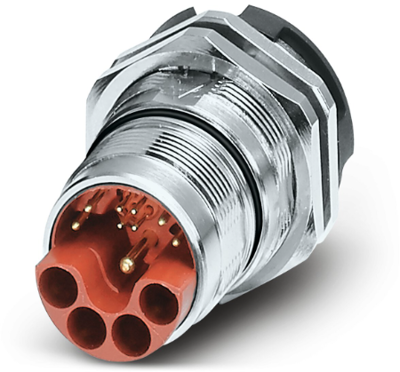

1627206 Phoenix Contact Other Circular Connectors Image 1
1627206 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
52.9431 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
52.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.9431 €

Device connector, rear mounting, 1627206, Phoenix Contact

Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 8+4+PE, contact type: male, crimp termination, flat seal, central fixing M26 x 1, wall thickness min.: 1.5 mm, wall thickness max.: 5 mm

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Cable cross-section 0.25-4.0 mm²
Pin number 13 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
