1627205 | Phoenix Contact
Plug, 13 pole, crimp connection, screw locking, straight, 1627205
Unit Price (€ / pc.)
55.3945 € *
Available in 10 days: 77 pcs. - if ordered today

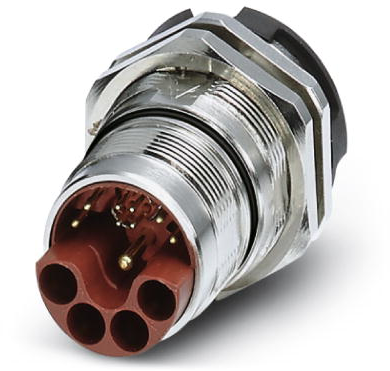

Device connector, rear mounting, 1627205, Phoenix Contact
Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 4+4+PE / 3+N+PE, contact type: male, crimp connection, flat seal, central fixing M26 x 1, wall thickness min.: 1.5 mm, wall thickness max.: 5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Pin number | 13 pole | |
| Type of locking | screw locking | |
| Assembly | central Mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
