1624344 | Phoenix Contact

Socket, 13 pole, crimp connection, screw locking, straight, 1624344

Order No.: 62P4248
EAN: 4055626298030
MPN:
1624344
SH-8ESC58AH000S
Series: SH

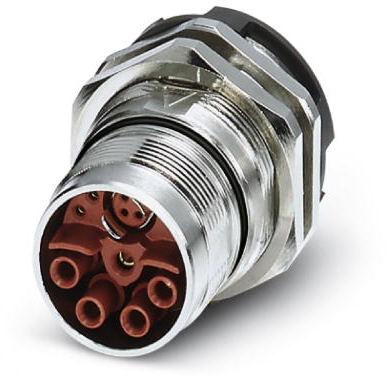

1624344 Phoenix Contact Other Circular Connectors Image 1
1624344 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
55.3945 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
55.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.3945 €

Device connector, rear mounting, 1624344, Phoenix Contact

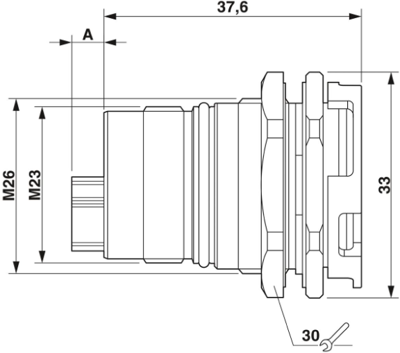

Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 4+4+PE / 3+N+PE, contact type: female, crimp connection, flat seal, central fixing M26 x 1, wall thickness min.: 1.5 mm, wall thickness max.: 5 mm

Technical specifications
Filter Property Value
Pin number 13 pole
Contact connection crimp connection
Assembly central Mounting
Version socket
Cable cross-section 0.25-4.0 mm²
Shell Material copper alloy
Orientation straight
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
