1624051 | Phoenix Contact

Socket, 12 pole, solder connection, screw locking, straight, 1624051

Order No.: 62P0222
EAN: 4055626227696
MPN:
1624051
CA-12S1N126L00
Series: CA

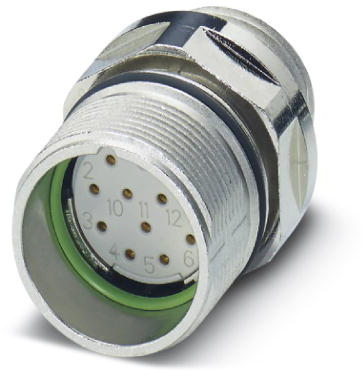

1624051 Phoenix Contact Other Circular Connectors Image 1
1624051 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
36.5092 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
36.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.5092 €

Device connector, front mounting, 1624051, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 12, contact type: female, solder termination, axial seal, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 1.0 mm²
Pin number 12 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
