1624047 | Phoenix Contact

Socket, 7 pole, solder connection, screw locking, straight, 1624047

Order No.: 61P9954
EAN: 4055626227672
MPN:
1624047
CA-07S1N126L00
Series: CA

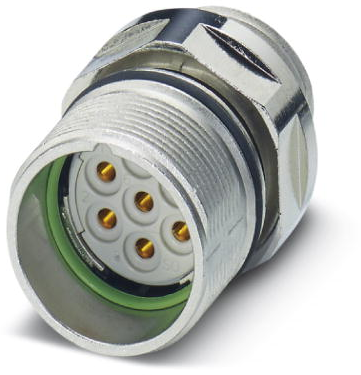

1624047 Phoenix Contact Other Circular Connectors Image 1
1624047 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
38.4489 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
38.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.4489 €

Device connector, front mounting, 1624047, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 7, contact type: female, solder termination, axial seal, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 2.0-2.5 mm²
Pin number 7 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
