1624046 | Phoenix Contact

Plug, 7 pole, solder connection, screw locking, straight, 1624046

Order No.: 61P9901
EAN: 4055626227665
MPN:
1624046
CA-07P1N126L00
Series: CA

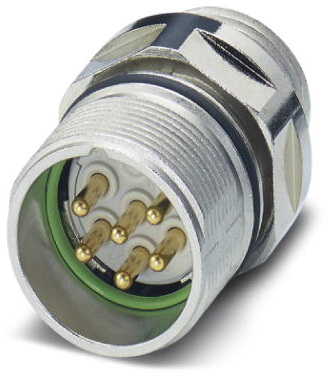

1624046 Phoenix Contact Other Circular Connectors Image 1
1624046 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
38.2585 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
38.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.2585 €

Device connector, front mounting, 1624046, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole number: 7, contact type: male, solder termination, axial seal, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 2.0-2.5 mm²
Pin number 7 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
