1624044 | Phoenix Contact

Plug, 6 pole, solder connection, screw locking, straight, 1624044

Order No.: 61P9795
EAN: 4055626227641
MPN:
1624044
CA-06P1N126L00
Series: CA

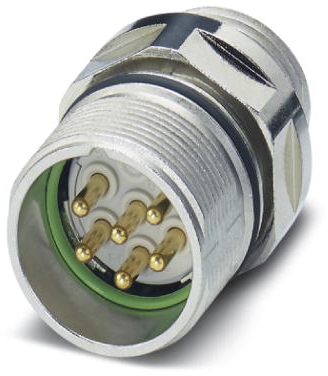

1624044 Phoenix Contact Other Circular Connectors Image 1
1624044 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
36.7472 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
36.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.7472 €

Device connector, front mounting, 1624044, Phoenix Contact

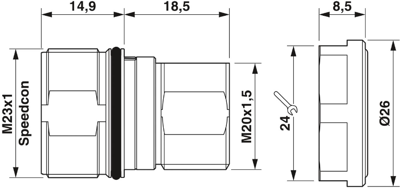

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole number: 6, contact type: male, solder termination, axial seal, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Filter Property Value
Pin number 6 pole
Shell Material copper alloy
Cable cross-section 2.0-2.5 mm²
Version plug
Assembly central Mounting
contact surface nickel-plated/gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
