1624031 | Phoenix Contact

Socket, 7 pole, crimp connection, screw locking, straight, 1624031

Order No.: 61P9980
EAN: 4055626227399
MPN:
1624031
CA-07S1N8A6L00
Series: CA

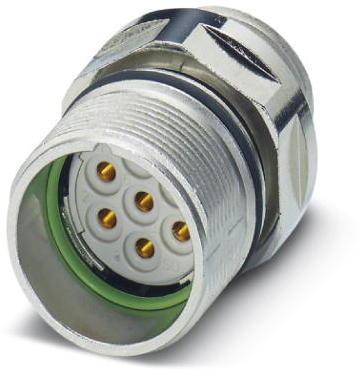

1624031 Phoenix Contact Other Circular Connectors Image 1
1624031 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.1312 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
29.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.1312 €

Device connector, front mounting, 1624031, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, number of poles: 7, contact type: female, crimp connection, axial sealing, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Cable cross-section 1.0-2.5 mm²
Pin number 7 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
