1624027 | Phoenix Contact
Plug, 16 pole, crimp connection, screw locking, straight, 1624027
Unit Price (€ / pc.)
28.7504 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

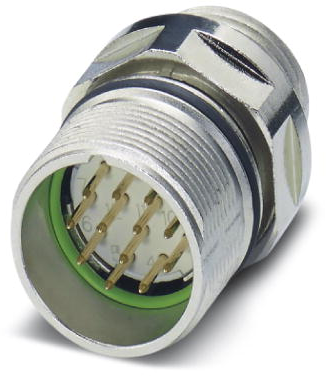

Device connector, front mounting, 1624027, Phoenix Contact

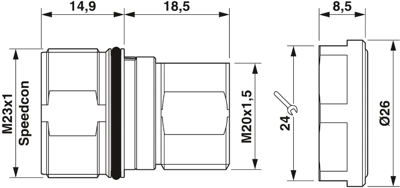

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, number of poles: 16, contact type: male, crimp connection, axial sealing, central fixing M20 x 1.5, positionable by lock nut
Technical specifications
| Type of locking | screw locking | |
| Assembly | central Mounting | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.08-1.0 mm² | |
| Pin number | 16 pole | |
| Version | plug | |
| Shell Material | copper alloy | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
