1624023 | Phoenix Contact

Plug, 7 pole, crimp connection, screw locking, straight, 1624023

Order No.: 61P9927
EAN: 4055626227795
MPN:
1624023
CA-07P1N8A6L00
Series: CA

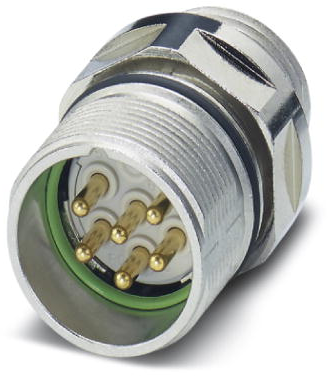

1624023 Phoenix Contact Other Circular Connectors Image 1

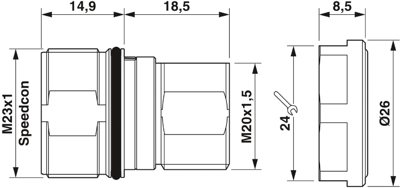

1624023 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.4767 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
28.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.4767 €

Device connector, front mounting, 1624023, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, number of poles: 7, contact type: male, crimp connection, axial sealing, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Filter Property Value
Pin number 7 pole
Shell Material copper alloy
Cable cross-section 0.08-1.0 mm²
Version plug
Assembly central Mounting
Orientation straight
Type of locking screw locking
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
