1624022 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1624022

Order No.: 61P9821
EAN: 4055626227122
MPN:
1624022
CA-06P1N8A6L00
Series: CA

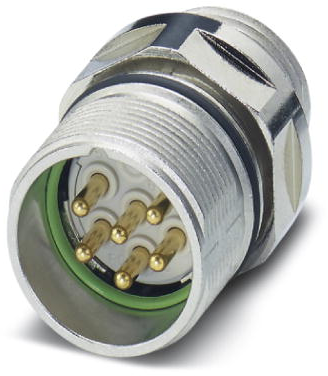

1624022 Phoenix Contact Other Circular Connectors Image 1
1624022 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.0007 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
28.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.0007 €

Device connector, front mounting, 1624022, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, number of poles: 6, contact type: male, crimp connection, axial sealing, central fixing M20 x 1.5, positionable by lock nut

Technical specifications
Filter Property Value
Version plug
Orientation straight
Shell Material copper alloy
Pin number 6 pole
Cable cross-section 0.08-1.0 mm²
Contact connection crimp connection
Assembly central Mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
