1623375 | Phoenix Contact

Plug, 13 pole, crimp connection, screw locking, straight, 1623375

Order No.: 62P3989
EAN: 4055626195155
MPN:
1623375
SB-8EPSA8AWT00S
Series: SB

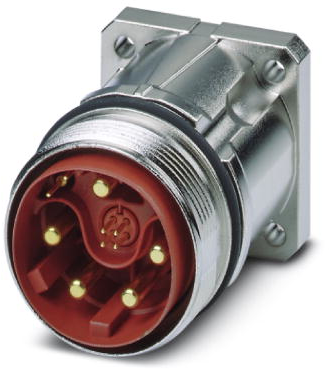

1623375 Phoenix Contact Other Circular Connectors Image 1

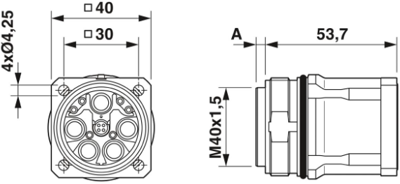

1623375 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
78.4686 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
78.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
78.4686 €

Device connector, front mounting, 1623375, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M40, pole count: 8+4+PE, contact type: male, crimp connection, O-ring axial, 4x Ø4.2, flange dimension: 40 mm x 40 mm

Technical specifications
Filter Property Value
Version plug
Pin number 13 pole
Orientation straight
Contact connection crimp connection
Cable cross-section 1.0-16 mm²
Assembly panel mounting
Shell Material copper alloy
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
