1623365 | Phoenix Contact

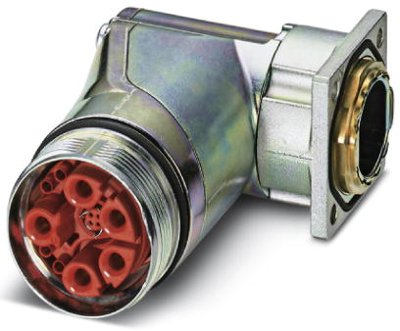

Socket, 13 pole, crimp connection, screw locking, angled, 1623365
Unit Price (€ / pc.)
103.3753 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Device connector, front mounting, 1623365, Phoenix Contact
Panel connector, front panel, angled rotatable, shielded: yes, for standard and SPEEDCON locking, M40, poles: 4+4+4PE, contact type: female, crimp connection, O-ring axial, 4x Ø4.2
Technical specifications
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-10 mm² | |
| Pin number | 13 pole | |
| Version | socket | |
| Shell Material | copper alloy | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
