1621741 | Phoenix Contact

Plug, 12 pole, solder connection, screw locking, angled, 1621741

Order No.: 62P0178
EAN: 4055626000572
MPN:
1621741
CA-12P1N12AD00
Series: CA
Phoenix Contact

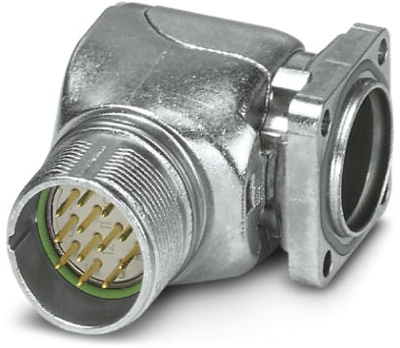

1621741 Phoenix Contact Other Circular Connectors Image 1

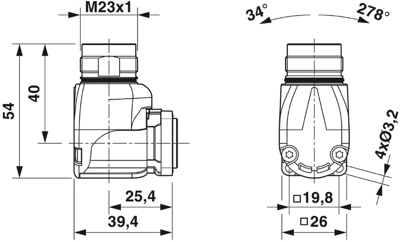

1621741 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.1296 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
33.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
33.1296 €

Device connector, front mounting, 1621741, Phoenix Contact

Panel connector, front panel, angled rotatable, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 12, contact type: male, solder termination, O-ring axial, 4x Ø 3.2

Technical specifications
Version plug
Shell Material copper alloy
Contact connection solder connection
contact surface nickel-plated/gold-plated
Cable cross-section 1.0 mm²
Assembly panel mounting
Orientation angled
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
