1621735 | Phoenix Contact
Plug, 9 pole, crimp connection, screw locking, angled, 1621735
Unit Price (€ / pc.)
30.8329 € *
Standard delivery time from the manufacturer is: On Request

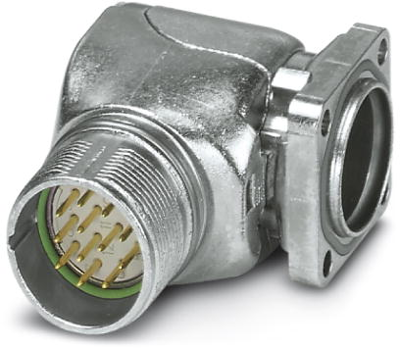

Device connector, front mounting, 1621735, Phoenix Contact
Panel connector, front panel, angled rotatable, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 8+1, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Type of locking | screw locking | |
| Cable cross-section | 0.08-1.0 mm² | |
| Assembly | panel mounting | |
| Version | plug | |
| Contact connection | crimp connection | |
| Pin number | 9 pole | |
| Shell Material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
