1621567 | Phoenix Contact

Socket, 13 pole, crimp connection, screw locking, straight, 1621567

Order No.: 62P4249
EAN: 4046356937153
MPN:
1621567
SH-8ESC58AWA00S
Series: SH
1621567 Phoenix Contact Other Circular Connectors Image 1
1621567 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
40.7694 € *
Available in 10 days: 317 pcs. - if ordered today
Total Price:
40.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.7694 €

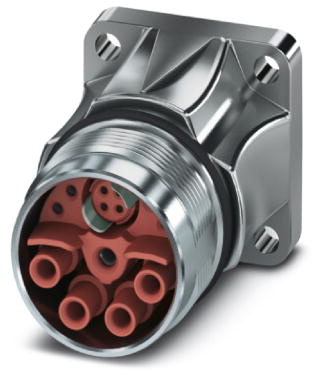

Device connector, front mounting, 1621567, Phoenix Contact

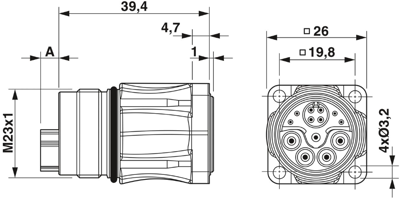

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, number of poles: 4+4+PE / 3+N+PE, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, flange size: 26 mm x 26 mm

Technical specifications
Filter Property Value
Version socket
Assembly panel mounting
Pin number 13 pole
Contact connection crimp connection
Cable cross-section 0.25-4.0 mm²
Type of locking screw locking
Orientation straight
Shell Material copper alloy
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
