1621565 | Phoenix Contact

Plug, 13 pole, crimp connection, screw locking, angled, 1621565

Order No.: 62P4209
EAN: 4046356937139
MPN:
1621565
SH-8EPC58AAD00S
Series: SH

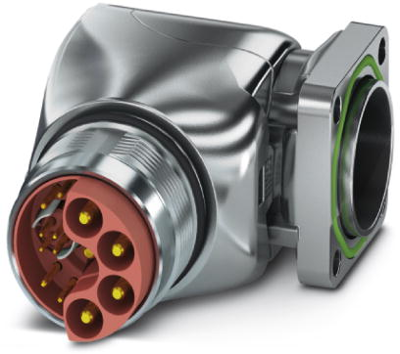

1621565 Phoenix Contact Other Circular Connectors Image 1
1621565 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
55.3945 € *
Available in 10 days: 46 pcs. - if ordered today
Total Price:
55.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.3945 €

Device connector, front mounting, 1621565, Phoenix Contact

Panel connector, front panel, angled rotatable, shielded: yes, for standard and SPEEDCON locking, M23, number of poles: 4+4+PE / 3+N+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, flange size: 26 mm x 26 mm

Technical specifications
Filter Property Value
Pin number 13 pole
Contact connection crimp connection
Assembly panel mounting
Version plug
Cable cross-section 0.25-4.0 mm²
Shell Material copper alloy
Orientation angled
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
