1621561 | Phoenix Contact

Plug, 13 pole, crimp connection, screw locking, angled, 1621561

Order No.: 62P4208
EAN: 4046356937092
MPN:
1621561
SH-8EPC58AAC00S
Series: SH

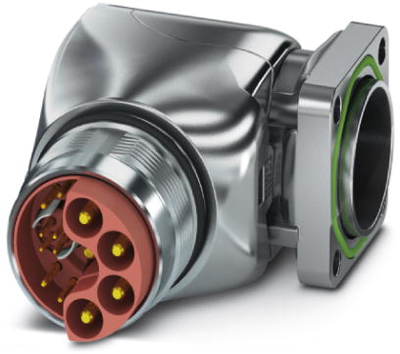

1621561 Phoenix Contact Other Circular Connectors Image 1
1621561 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
54.8828 € *
Available in 10 days: 3 pcs. - if ordered today
Total Price:
54.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
54.8828 €

Device connector, front mounting, 1621561, Phoenix Contact

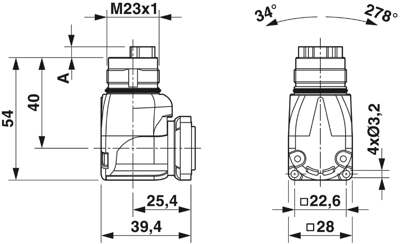

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M23, number of poles: 4+4+PE / 3+N+PE, contact type: pin, crimp connection, O-ring axial, 4x Ø 3.2, flange size: 28 mm x 28 mm

Technical specifications
Version plug
Cable cross-section 0.25-4.0 mm²
Contact connection crimp connection
Shell Material copper alloy
Assembly panel mounting
Pin number 13 pole
Type of locking screw locking
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
