1621559 | Phoenix Contact

Socket, 13 pole, crimp connection, screw locking, angled, 1621559

Order No.: 62P4246
EAN: 4046356937078
MPN:
1621559
SH-8ESC58AAC00S
Series: SH

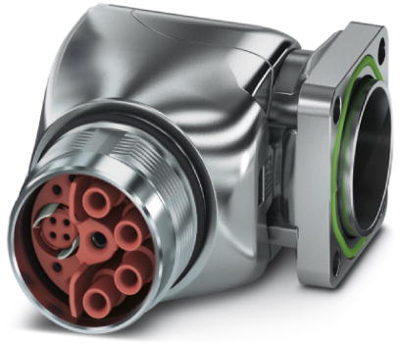

1621559 Phoenix Contact Other Circular Connectors Image 1

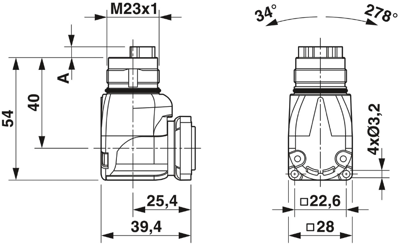

1621559 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
54.8828 € *
Available in 10 days: 48 pcs. - if ordered today
Total Price:
54.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
54.8828 €

Device connector, front mounting, 1621559, Phoenix Contact

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M23, number of poles: 4+4+PE / 3+N+PE, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, flange size: 28 mm x 28 mm

Technical specifications
Orientation angled
Type of locking screw locking
Shell Material copper alloy
Cable cross-section 0.25-4.0 mm²
Pin number 13 pole
Assembly panel mounting
Version socket
Contact connection crimp connection
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
