1621326 | Phoenix Contact

Test plug, 2 pole + PE, screw connection, straight, 1621326

Order No.: 64P2203
EAN: 4046356914734
MPN:
1621326
PRC 3-TC-FS6 8-21
Series: PRC

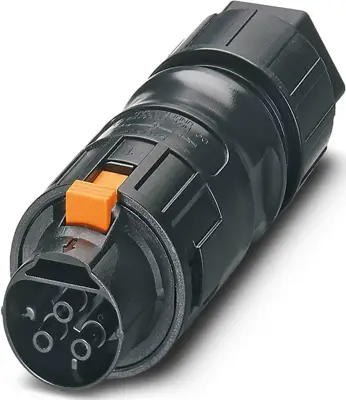

1621326 Phoenix Contact Other Circular Connectors Image 1

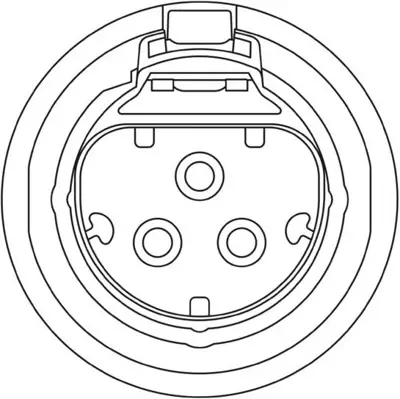

1621326 Phoenix Contact Other Circular Connectors Image 2

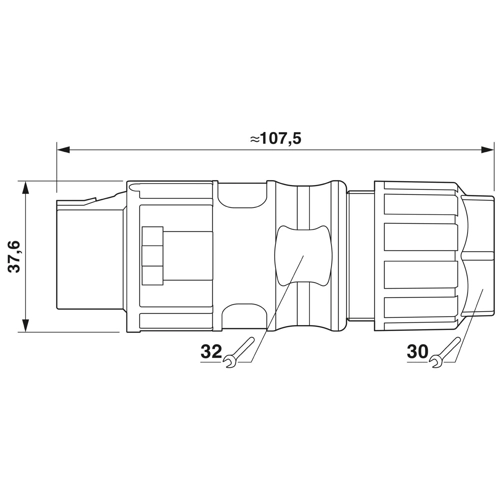

1621326 Phoenix Contact Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
35.7198 € *
Available in 10 days: 14 pcs. - if ordered today
Total Price:
35.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
35.7198 €

Test plug, 1621326, Phoenix Contact

PRC test plug, 2000 plug cycles, black, can be released by hand, 3-pos., 1.5 mm² ... 6 mm² / 690 V / 35 A, with screw connection for cables with an outside diameter of 8 mm-21 mm.

Technical specifications
Filter Property Value
Pin number 2 pole + PE
Contact connection screw connection
Assembly cable assembly
Version test plug
Cable diameter 8 to 21 mm
Cable cross-section 1.5-6 mm²
Shell Material PPE
Orientation straight
contact surface silver-plated
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
