1621325 | Phoenix Contact

Test plug, 4 pole + PE, screw connection, straight, 1621325

Order No.: 64P2204
EAN: 4046356914727
MPN:
1621325
PRC 5-TC-FS6 8-21
Series: PRC

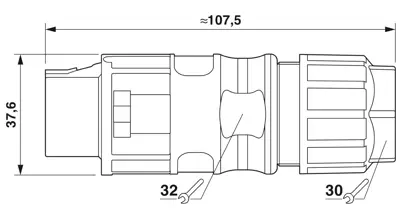

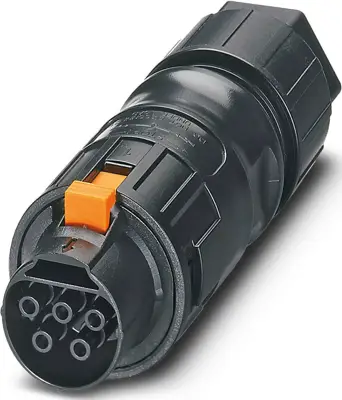

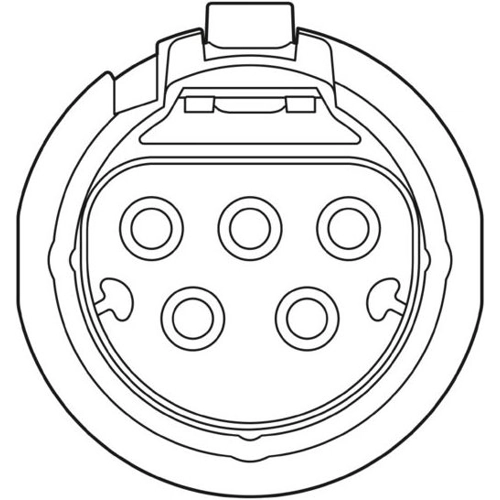

1621325 Phoenix Contact Other Circular Connectors Image 1
1621325 Phoenix Contact Other Circular Connectors Image 2
1621325 Phoenix Contact Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
46.8706 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
46.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
46.8706 €

Test plug, 1621325, Phoenix Contact

PRC test plug, 2000 plug cycles, can be released by hand, black, 5-pos., 1.5 mm² ... 6 mm² / 690 V / 35 A, with screw connection for cables with an outside diameter of 8 mm-21 mm.

Features

  • Up to 75% smaller in size than industrial connectors with the same rating
  • Locking mechanism can be unlocked manually or using a tool
  • Suitable for applications in atmospheres containing salt and in direct sunlight
  • Ideal for indoor and outdoor use due to weatherproof materials
Technical specifications
Cable diameter 8 to 21 mm
contact surface silver-plated
Assembly cable assembly
Contact connection screw connection
Cable cross-section 1.5-6 mm²
Pin number 4 pole + PE
Version test plug
Shell Material PPE
Orientation straight
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
